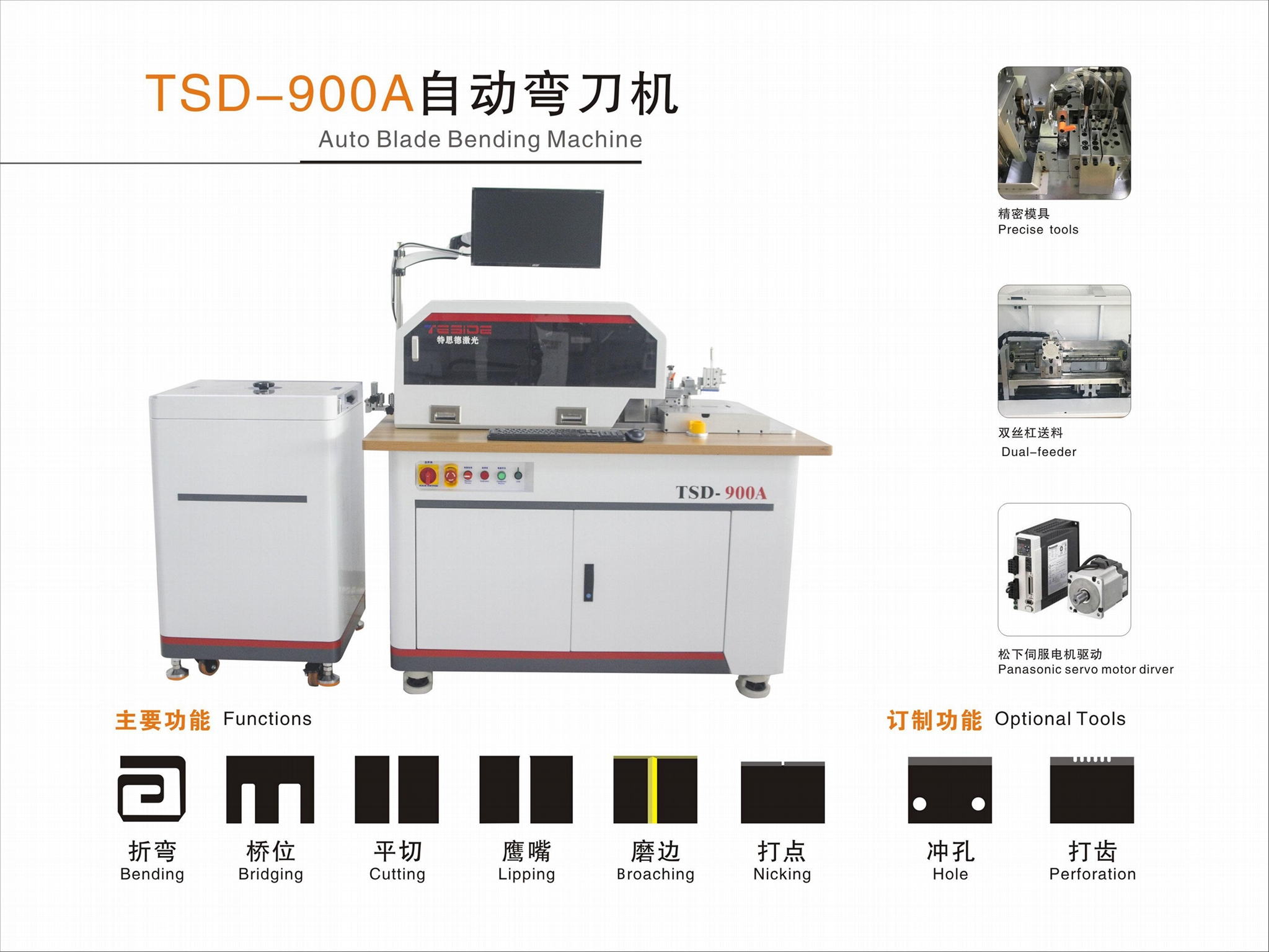

TSD-900A Auto blade bending machine
TSD-900A Auto blade bending machine
Machine Model No. : TSD-900A
TSD-900A Fully automatic blade bending machine
Automatic blade bending machine (TSD-900A) is numerical control program, it’s developed and designed for the convenience of the user, it’s easy to operate and support DXF file of auto CAD, support file(DXF,AI,NC.)
Bending Blade thickness: 0.45/0.53/0.71mm
Bending Blade height: 8-23.8mm
Bending, cutting, lipping, bridge and functions for 2pt & 3pt rule,
Bridge width according to tool width, adjustable by software for wider width, height adjustable manually form 10-20mm.
Broaching: bilateral "V" type or "flat" type, depth is automatic controlled.
Perforation: width 1mm, >1mm width adjustable by software.By punching tool, can be custom made according to requirement.
Nicking(continuous point): two nicking discs installed,height is adjustable, width can be switched between 0.3-0.8mm according to nick discs installed.
-----------------------------------------------------------------------------------------------------------
Features:
Processing of functions such as fully automatic bending, bridge,lipping, flat cutting, broaching, nicking, perforation.
1. Panasonic Servo motor system + Ball-screw guide rail design, avoiding skidding and error in length.
2. Unique imported mould tool design, easy to bend pattern, high precision of size, durable.
3. In order guarantee precision and long-life span, transmission and control parts are imported.
4. Self-developed latest bending control system, easy to operate and upgrade available.
5. Fully English & Chinese interface, easy to learn how to operate, make bending work easy.
6. It can be installed soon after bending patterns form the machine, no need extra more hard work.
7. It’s widely used in box mould, doll, plastic, electric mould bending.
8. Exactly to realize fully automatic bending, help to save plate making time.

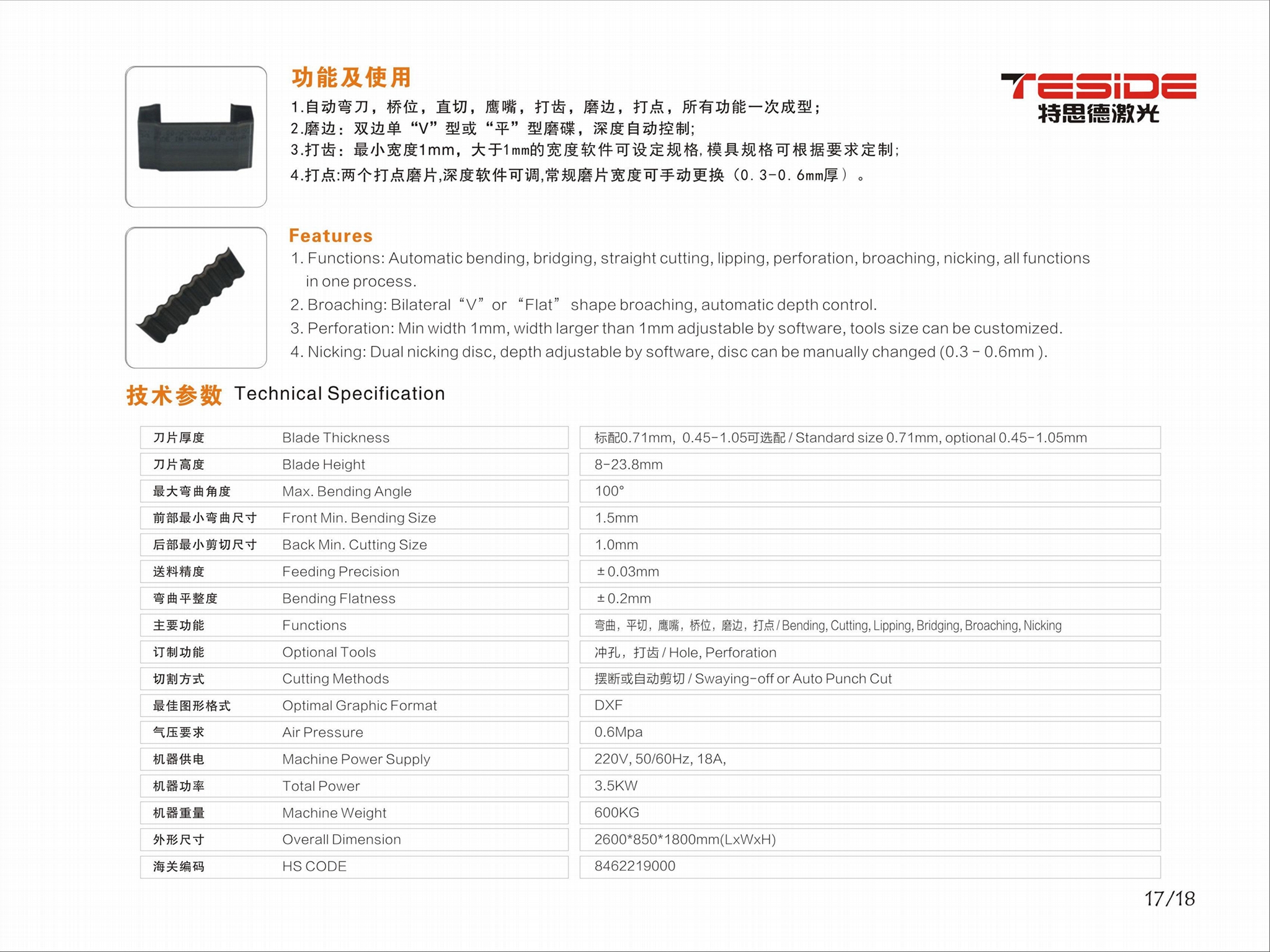

Technical Parameter:
Blade thickness(mm)
0.45mm，0.53mm, 0.71mm
Blade height(mm)
8-23.8mm
Max. bending angle
100°
Min. ARC radius of 90 degree
0.4mm
Front Min. bending size
1.5mm
Back Min. cutting size
1.0mm
Feeding precision
±0.02mm
Bending flatness
±0.2mm
Functions
Bending, cutting, lipping, bridge, broaching,nicking, perforation.
Cutting methods
Swing cutting or Auto flat cutting
Optimal pattern format
dxf format
Air supply
0.6mpa
Power supply
380∨ 50/60HZ(Standard)
Machine total power
1.5kw
Gross weight.
600KG
Overall dimension
2850×1050×1350mm(L×W×H)
=============================================================
After-sales service:
1. English-speaking engineer is available for end-user's machine installation and training under buy’s cost around 5days.
2. English software, installation and related training instructions and videos are available for end-users.
3. In case of any problems or questions about laser technology you can always refer to TSD Laser .
4. With our customer-orientated service support, maintenance and repair costs will be kept low.
5. One year guarantee for machine is promised.
For installation: TSD offer operation instructions and videos
|
|
|
|
